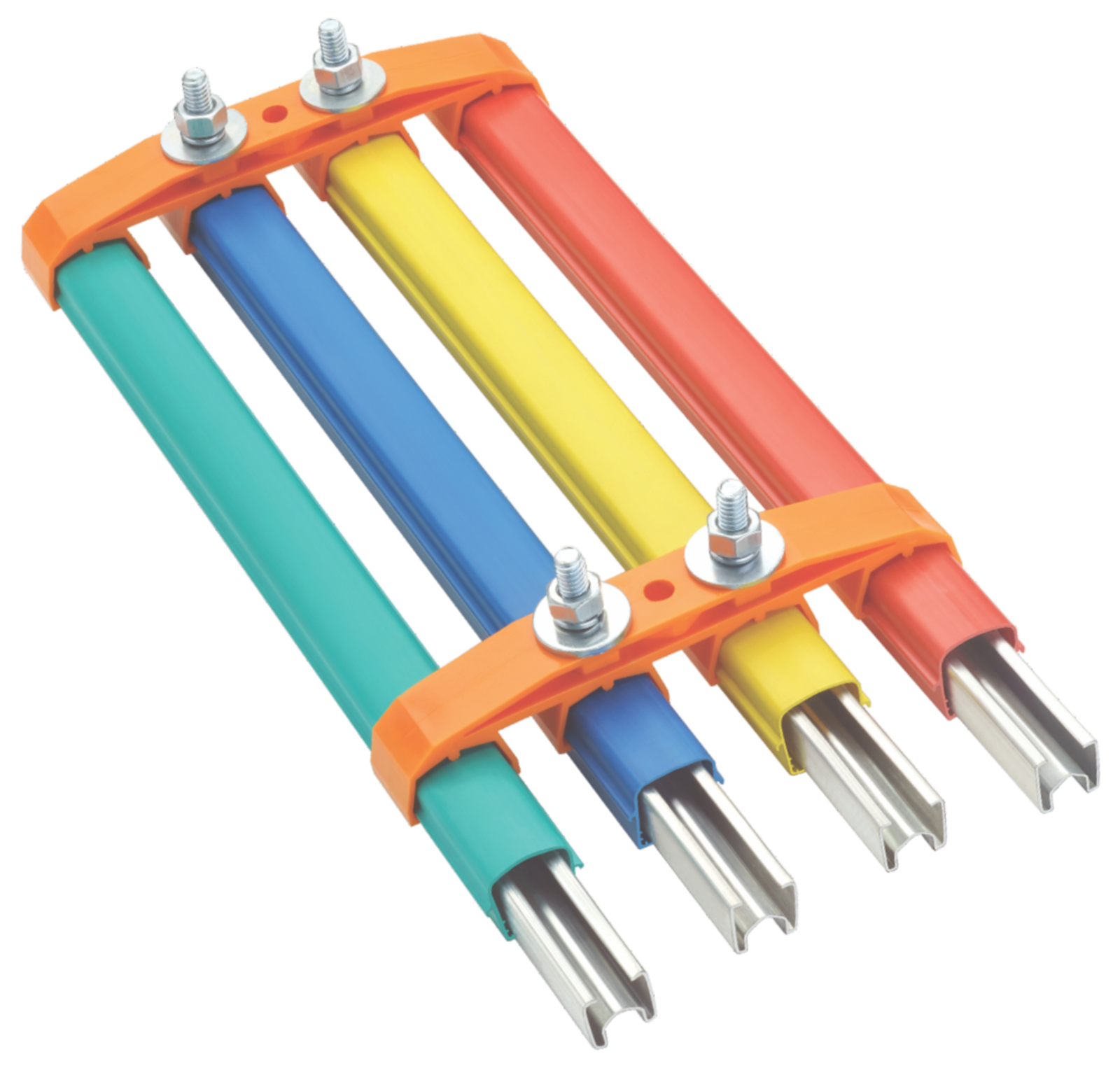

Bolt Joint Busbar System
Dependable, made-in-India Bolt Joint Busbar System for robust and efficient power distribution to cranes and moving machinery. IP21 rated with touch-proof, no-exposed-part design for safe indoor and outdoor installation.
Key Features
Applications
Bolt Joint Busbar System Specification
| Type | Bolt Joint DSL Busbar |
| Protection | IP21 |
| Installation | Indoor & Outdoor |
About Bolt Joint Busbar System
Standard Features
Overview: The Bolt Joint Busbar System is a reliable, made-in-India solution for supplying power to overhead cranes and moving machinery. With an IP21 protection rating and a fully touch-proof design with no exposed parts, it delivers safe, efficient power distribution in both indoor and outdoor industrial environments.
Safe by Design: The touch-proof housing ensures there are no exposed live parts, protecting maintenance personnel and operators from accidental contact — a critical safety requirement in busy crane bays and workshops.
Quick & Easy Installation: Bolt joint connections make assembly and extension straightforward on site, reducing installation time and allowing the system to be configured to any required runway length with minimal effort.
Technical Specification
| Parameter | BJB-GI-100 | BJB-GI-125 | BJB-CU-160 | BJB-CU-250 | BJB-CU-400 | BJB-AL-200 | BJB-AL-315 |
|---|---|---|---|---|---|---|---|
| Conductor Bar System | Galvanized Steel | Galvanized Steel | Copper | Copper | Copper | Aluminium/SS | Aluminium/SS |
| Nominal Current (A) @ 100% / 35°C | 100 | 125 | 160 | 250 | 400 | 200 | 315 |
| DC Resistance (Ω/M @ 35°C) | 0.003584 | 0.002867 | 0.000342 | 0.000274 | 0.000184 | 0.000301 | 0.000261 |
| Impedance (Ω/M @ 35°C) | 0.003604 | 0.002891 | 0.000364 | 0.000300 | 0.000221 | 0.000325 | 0.000288 |
| Voltage Grade (V) | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Support Spacing (mm) | 1125 | 1125 | 1125 | 1125 | 1125 | 1125 | 1125 |
| Bar Length (mm) | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| Outside Dimensions (mm) | 23×27 | 23×27 | 23×27 | 23×27 | 23×27 | 23×27 | 23×27 |
| Ambient Temperature | -30°C to +55°C (Standard) / -30°C to +85°C (High Temp) |
Built to IS/FEM Standards
Every unit undergoes structural FEA, load testing at 125% capacity, and third-party inspection before dispatch. AK Engineering Works backs every product with full documentation, AMC support, and nationwide service coverage.
Related Products
Ancillaries
Complete range of crane ancillaries including end carriages, festoon systems, conductor bars, and control panels for overhead cranes.
View Details

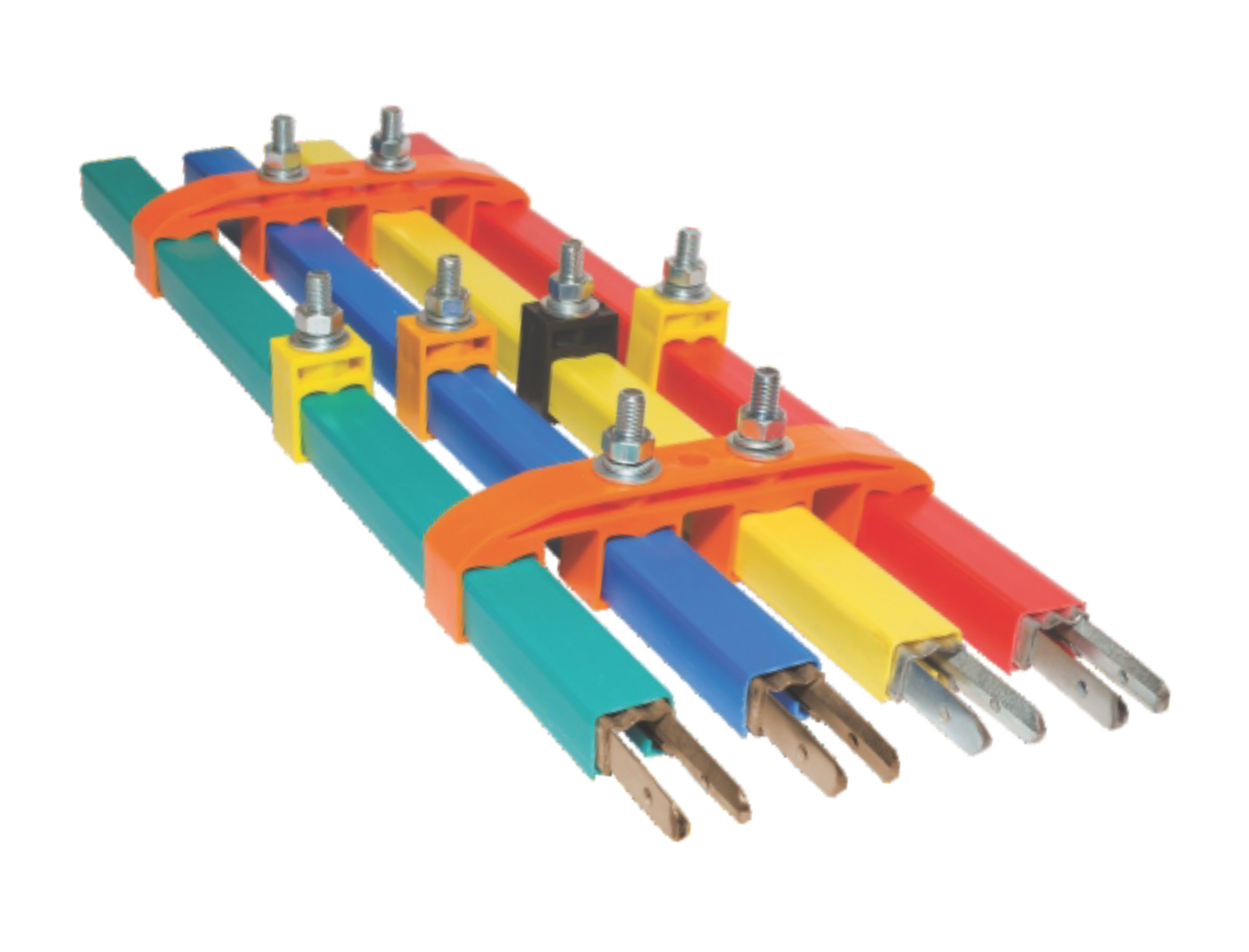

Pin Joint Busbar System
Durable, high-performance Pin Joint Busbar System for crane electrification and power distribution. IP20 rated with fully shrouded, no-exposed-part design for safe indoor and outdoor use.
View Details

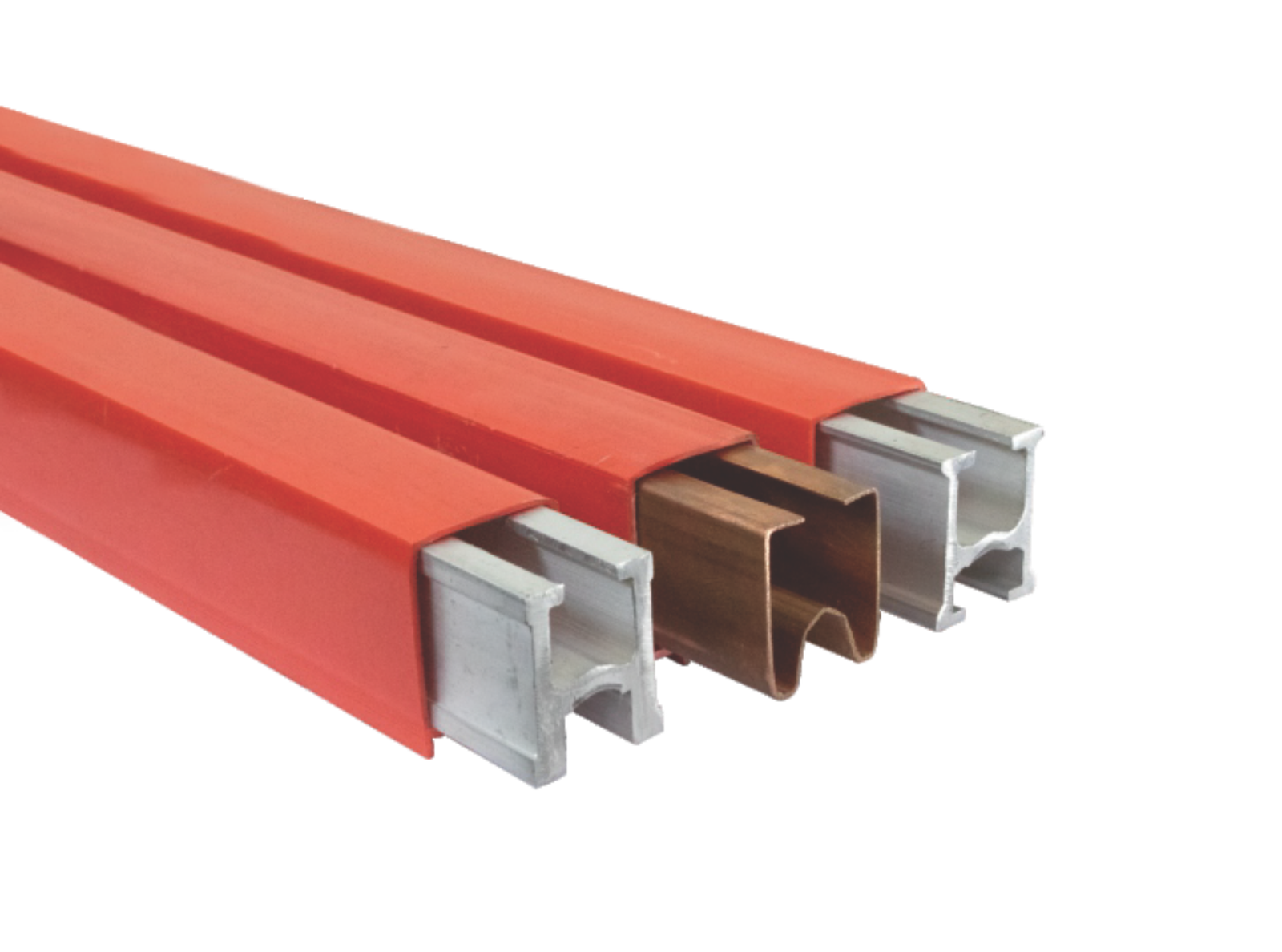

Heavy Duty DSL Busbar System
