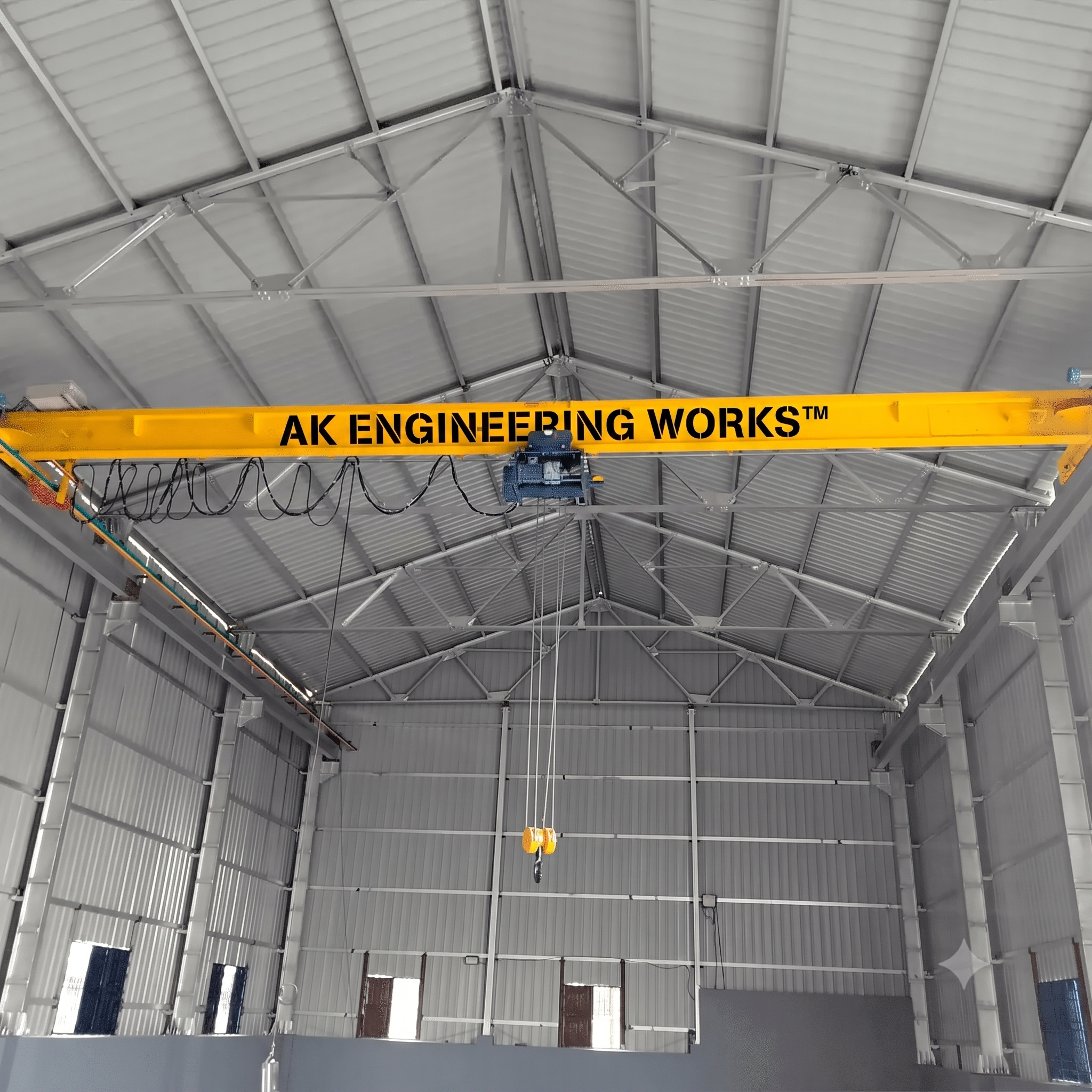

Single Girder EOT Crane

Single girder EOT crane for light to medium duty overhead lifting. Energy-efficient design with low headroom and easy maintenance.

Capacity Range

As per requirements

Span Range

As per requirements

Request a Quote WhatsApp Us

Key Features

Low headroom

FEM/IS standard

VFD drives available

Remote control

Applications

Light Manufacturing

Warehouses

Assembly Lines

Machine Shops

Single Girder EOT Crane Specification

Condition	New
Height	254–508 Millimeter (mm)
Product Type	EOT Crane
Weight	10–20 Kilograms (kg)
Color	Silver
Width	20–25 Millimeter (mm)

About Single Girder EOT Crane

Standard Features

Overview: The Single Girder EOT Crane is a trusted choice for industries that need reliable, heavy-duty lifting without compromising on space or budget. Engineered under strict quality controls and built in compliance with industry standards using cutting-edge technology, it's available in a wide range of capacities, heights, and spans to suit virtually any application.
High Load Carrying Capability: Designed to handle demanding lifting tasks with ease, the crane delivers consistent performance even under sustained heavy loads — making it ideal for warehouses, assembly lines, and machine shops.
Impeccable Durability: Every structural component is fabricated to withstand the rigors of continuous industrial use. The robust build ensures a long service life with minimal downtime.
Rust Proof: Finished with a corrosion-resistant treatment, the crane holds up well in humid and chemically active environments, keeping maintenance costs low over the years.

Technical Specification

S.W.L (M.T)	Span (mtrs.)	Head Room (mm)	Wheel Base (mm)	Hook Approach (mm) E/F	End Clearance (mm) A	Wheel Load Per Wheel (Approx)	Weight of Crane Kgs (Approx)
1.0	8	650	1600	700	200	1000	1700
	12	750	2400	700	200	1200	2500
	16	800	3200	700	200	1400	3250
	20	850	4000	700	200	1775	4700
2.0	8	750	1600	750	200	1600	2000
	12	800	2400	750	200	1850	2900
	16	850	3200	750	200	2000	3800
	20	900	4000	750	200	2400	5200
3.0	8	800	1600	850	200	2200	2500
	12	850	2400	850	200	2450	3500
	16	900	3200	850	200	2650	4300
	20	1100	4000	850	200	3125	6200
5.0	8	800	1600	950	250	3400	2900
	12	900	2400	950	250	3725	4200
	16	1000	3200	950	250	4000	5300
	20	1100	4000	950	250	4450	7100
7.5	8	850	1600	1000	250	4850	3600
	12	1000	2400	1000	250	5200	5100
	16	1100	3200	1000	250	5650	6700
	20	1200	4000	1000	250	6100	8500
10.0	8	900	1600	1100	250	6350	4400
	12	1000	2400	1100	250	6750	6000
	16	1200	3200	1100	250	7200	7800
	20	1300	4000	1100	250	7500	9300
15.0	8	1000	1600	1200	250	9500	6200
	12	1100	2400	1200	250	9850	7600
	16	1250	3200	1200	250	10300	9600
	20	1400	4000	1200	250	10800	12000

Built to IS/FEM Standards

Every unit undergoes structural FEA, load testing at 125% capacity, and third-party inspection before dispatch. AK Engineering Works backs every product with full documentation, AMC support, and nationwide service coverage.
